Đầu dò quay bằng nhựa sử dụng với Scanner/Rotating Plastic Scanner Probes
The rotating plastic scanner probes section features a variety of expandable plastic-tip probes and stainless-steel backshell probes, including the SUB series, SPO-5965 series, SPO-3564 series, and standard series.
| Fischer Connector | LEMO Connector | |||||||
| SPO-5965* | SUB Series* | SPO-3564** | ||||||
| Range of Hole Size mm (in.) |
Part Number | Item Number | Part Number | Item Number | Working Length mm (in.) |
Part Number | Item Number | Working Length mm (in.) |
| 3.2 to 3.9 (0.125 to 0.156) | 9230531 | U8610280 | SUB-8-10 | U8600494 | 44.0 (1.75) | 9230784 | U8614109 | 28.0 (1.10) |
| 3.9 to 4.7 (0.156 to 0.187) | 9230061 | U8610267 | SUB-10-12 | U8600481 | 44.0 (1.75) | 9230078 | U8614059 | 28.0 (1.10) |
| 4.7 to 5.5 (0.187 to 0.218) | 9219979 | U8610231 | SUB12-14 | U8600482 | 44.0 (1.75) | 9217153 | U8614091 | 28.0 (1.10) |
| 5.5 to 6.5 (0.218 to 0.250) | 9219980 | U8610232 | SUB-14-16 | U8600483 | 50.8 (2.00) | 9217154 | U8614092 | 28.0 (1.10) |
| 6.5 to 7.1 (0.250 to 0.281) | 9219981 | U8610233 | SUB-16-18 | U8600484 | 50.8 (2.00) | 9217155 | U8614093 | 28.0 (1.10) |
| 7.1 to 7.9 (0.281 to 0.312) | 9219982 | U8610234 | SUB-18-20 | U8600485 | 50.8 (2.00) | 9217156 | U8614094 | 38.0 (1.50) |
| 7.9 to 9.5 (0.312 to 0.375) | 9219983 | U8610235 | SUB-20-24 | U8600486 | 50.8 (2.00) | 9217157 | U8614095 | 38.0 (1.50) |
| 9.5 to 11.0 (0.375 to 0.437) | 9219978 | U8610230 | SUB-24-28 | U8600487 | 50.8 (2.00) | 9217158 | U8614096 | 38.0 (1.50) |
| 11.0 to 12.7 (0.437 to 0.500) | 9219984 | U8610236 | SUB-28-32 | U8600488 | 50.8 (2.00) | 9217159 | U8614097 | 38.0 (1.50) |
| 12.7 to 14.3 (0.500 to 0.562) | 9219985 | U8610237 | SUB-32-36 | U8600489 | 50.8 (2.00) | 9217160 | U8614098 | 38.0 (1.50) |
| 14.3 to 15.9 (0.562 to 0.625) | 9230156 | U8610252 | SUB-36-40 | U8600490 | 50.8 (2.00) | 9218785 | U8614099 | 38.0 (1.50) |
| 15.9 to 17.4 (0.625 to 0.687) | 9230157 | U8610253 | SUB-40-44 | U8600491 | 50.8 (2.00) | 9218786 | U8614100 | 38.0 (1.50) |
| 17.4 to 19.0 (0.687 to 0.750) | 9230158 | U8610254 | SUB-44-48 | U8600492 | 50.8 (2.00) | 9218787 | U8614101 | 38.0 (1.50) |
| * For use with MiniMite Fischer, Spitfire, and other “Universal” scanners. ** For use with MiniMite LEMO, RA19, and RA2000 scanners. |
||||||||

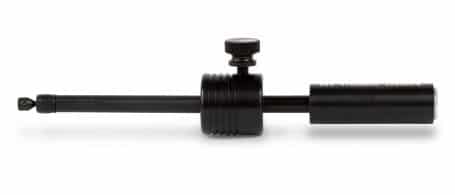

Đầu dò kiểm tra lỗ khoan thủ công/Manual Bolt Hole Probes
Manual bolt hole probe coils are positioned at right angles to the shaft direction. These probes are rotated by hand to inspect holes with the fasteners removed. Standard (fractional and metric) and custom diameters are available with either absolute or differential coils.
Hole Standard: Xin tham khảo catalog
Hole X Type
| Type | Series | Frequency | Coil | Shielding | Range of Hole Size | Connector | Part ID | Item # | Cable ID | Item # |
| Manual Bolt Hole | Adjustable X Type | 50 kHz – 500 kHz | Absolute Bridge | Unshielded | 4.7 mm – 5.5 mm (0.187 in. – 0.218 in.) | Microdot | BXM-12-16 | U8600094 | 9102894 | U8800041 |
| Manual Bolt Hole | Adjustable X Type | 50 kHz – 500 kHz | Absolute Bridge | Unshielded | 6.5 mm – 7.1 mm (0.250 in. – 0.281 in.) | Microdot | BXM-16-20 | U8600098 | 9102894 | U8800041 |
| Manual Bolt Hole | Adjustable X Type | 50 kHz – 500 kHz | Absolute Bridge | Unshielded | 7.9 mm – 9.5 mm (0.312 in. – 0.375 in.) | Microdot | BXM-20-24 | U8600101 | 9102894 | U8800041 |
| Manual Bolt Hole | Adjustable X Type | 50 kHz – 500 kHz | Absolute Bridge | Unshielded | 7.9 mm – 9.5 mm (0.312 in. – 0.375 in.) | Triax Fischer | BXM-20-24-TF | U8600103 | 9122244 | U8800091 |
| Manual Bolt Hole | Adjustable X Type | 50 kHz – 500 kHz | Absolute Bridge | Unshielded | 12.7 mm – 14.3 mm (0.5 in. – 0.562 in.) | Microdot | BXM-32-40 | U8600112 | 9102894 | U8800041 |
| Manual Bolt Hole | Adjustable X Type | 50 kHz – 500 kHz | Absolute Bridge | Shielded | 9.5 mm – 11.0 mm (0.375 in. – 0.437 in.) | Microdot | BXMF-24-28 | U8600128 | 9102894 | U8800041 |
Hole Countersink Stainless Steel
| Type | Series | Frequency | Coil | Shielding | Range of Hole Size | Connector | Part ID | Item # | Cable ID | Item # |
| Manual Bolt Hole | Countersink | 50 kHz – 500 kHz | Absolute Bridge | Unshielded | 3.2 mm (0.125 in.) | Microdot | CSM100-8 | U8600449 | 9102894 | U8800041 |
| Manual Bolt Hole | Countersink | 50 kHz – 500 kHz | Absolute Bridge | Unshielded | 4.0 mm (0.156 in.) | Microdot | CSM100-10 | U8600132 | 9102894 | U8800041 |
| Manual Bolt Hole | Countersink | 50 kHz – 500 kHz | Absolute Bridge | Unshielded | 4.7 mm (0.187 in.) | Microdot | CSM100-12 | U8600134 | 9102894 | U8800041 |
| Manual Bolt Hole | Countersink | 50 kHz – 500 kHz | Absolute Bridge | Unshielded | 5.5 mm (0.218 in.) | Microdot | CSM100-14 | U8600608 | 9102894 | U8800041 |
| Manual Bolt Hole | Countersink | 50 kHz – 500 kHz | Absolute Bridge | Unshielded | 6.3 mm (0.25 in.) | Microdot | CSM100-16 | U8600135 | 9102894 | U8800041 |
Đầu dò kiểm tra điểm/Spot Probes
Spot probes are used for discovering flaws both on and below surfaces. Their large coil diameter and low frequency operation are advantageous for scanning larger areas, and providing an increased detectable flaw size; typically equal to one-half of the probe diameter.
Standard Bridge
| Type | Series | Frequency | Diameter | Connector | Part ID | Item # |
| Spot Probes | Standard Bridge | 5 kHz – 100 kHz | 6.3 mm (0.25 in.) | Triax Fischer/LEMO | 9213546 | U8623001 |
| Spot Probes | Standard Bridge | 100 kHz – 500 kHz | 6.3 mm (0.25 in.) | Triax Fischer/LEMO | 9216541 | U8623011 |
| Spot Probes | Standard Bridge | 1 kHz – 50 kHz | 7.9 mm (0.31 in.) | Triax Fischer/LEMO | 9213012 | U8630063 |
| Spot Probes | Standard Bridge | 500 Hz – 40 kHz | 11.2 mm (0.44 in.) | Triax Fischer/LEMO | 9213547 | U8623002 |
| Spot Probes | Standard Bridge | 400 Hz – 30 kHz | 12.7 mm (0.50 in.) | Triax Fischer/LEMO | 9219548 | U8629536 |
| Spot Probes | Standard Bridge | 300 Hz – 10 kHz | 15.7 mm (0.62 in.) | Triax Fischer/LEMO | 9213011 | U8630002 |
| Spot Probes | Standard Bridge | 100 Hz – 2 kHz | 19.0 mm (0.75 in.) | Triax Fischer/LEMO | 9213549 | U8623004 |
| Spot Probes | Standard Bridge | 5 kHz – 100 kHz | 6.3 mm (0.25 in.) | Powerlink™ / 7-Pin LEMO | 9222196 | U8626007 |
| Spot Probes | Standard Bridge | 1 kHz – 50 kHz | 7.9 mm (0.31 in.) | Powerlink™ / 7-Pin LEMO | 9222161 | U8626004 |
| Spot Probes | Standard Bridge | 500 Hz – 40 kHz | 11.2 mm (0.44 in.) | Powerlink™ / 7-Pin LEMO | 9222456 | U8626012 |
| Spot Probes | Standard Bridge | 400 Hz – 30 kHz | 12.7 mm (0.50 in.) | Powerlink™ / 7-Pin LEMO | 9222457 | U8629298 |
| Spot Probes | Standard Bridge | 300 Hz – 10 kHz | 15.7 mm (0.62 in.) | Powerlink™ / 7-Pin LEMO | 9222193 | U8626006 |
| Spot Probes | Standard Bridge | 100 Hz – 2 kHz | 19.0 mm (0.75 in.) | Powerlink™ / 7-Pin LEMO | 9222192 | U8626005 |
Standard Reflection
| Type | Series | Frequency | Diameter | Connector | Part ID | Item # |
| Spot Probes | Standard Reflection | 2 kHz – 200 kHz | 6.3 mm (0.25 in.) | Triax Fischer/LEMO | 9213550 | U8623005 |
| Spot Probes | Standard Reflection | 2 kHz – 200 kHz | 6.3 mm (0.25 in.) | Triax Fischer/LEMO | 9213550 | U8623005 |
| Spot Probes | Standard Reflection | 700 Hz – 80 kHz | 7.9 mm (0.31 in.) | Triax Fischer/LEMO | 9213551 | U8623006 |
| Spot Probes | Standard Reflection | 400 Hz – 60 kHz | 11.2 mm (0.44 in.) | Triax Fischer/LEMO | 9213552 | U8623007 |
| Spot Probes | Standard Reflection | 300 Hz – 40 kHz | 12.7 mm (0.50 in.) | Triax Fischer/LEMO | 9213553 | U8623008 |
| Spot Probes | Standard Reflection | 100 Hz – 20 kHz | 15.7 mm (0.62 in.) | Triax Fischer/LEMO | 9213554 | U8623009 |
| Spot Probes | Standard Reflection | 100 Hz – 5 kHz | 19.0 mm (0.75 in.) | Triax Fischer/LEMO | 9213555 | U8623010 |
| Spot Probes | Standard Reflection | 2 kHz – 200 kHz | 6.3 mm (0.25 in.) | Powerlink™ / 7-Pin LEMO | 9222201 | U8626011 |
| Spot Probes | Standard Reflection | 700 Hz – 80 kHz | 7.9 mm (0.31 in.) | Powerlink™ / 7-Pin LEMO | 9222200 | U8626010 |
| Spot Probes | Standard Reflection | 400 Hz – 60 kHz | 11.2 mm (0.44 in.) | Powerlink™ / 7-Pin LEMO | 9222199 | U8626009 |
| Spot Probes | Standard Reflection | 300 Hz – 40 kHz | 12.7 mm (0.50 in.) | Powerlink™ / 7-Pin LEMO | 9222198 | U8626008 |
| Spot Probes | Standard Reflection | 100 Hz – 20 kHz | 15.7 mm (0.62 in.) | Powerlink™ / 7-Pin LEMO | 9222160 | U8626003 |
| Spot Probes | Standard Reflection | 100 Hz – 5 kHz | 19.0 mm (0.75 in.) | Powerlink™ / 7-Pin LEMO | 9222458 | U8626013 |
Corrosion Probes
| Type | Series | Frequency | Diameter | Connector | Part ID | Item # |
| Spot Probes | Corrosion Probes | 2 kHz – 200 kHz | 6.3 mm (0.25 in.) | Triax Fischer/LEMO | 9218204 | U8629537 |
| Spot Probes | Corrosion Probes | 700 Hz – 80 kHz | 7.9 mm (0.31 in.) | Triax Fischer/LEMO | 9217896 | U8633004 |
| Spot Probes | Corrosion Probes | 500 Hz – 60 kHz | 11.2 mm (0.44 in.) | Triax Fischer/LEMO | 9218108 | U8633005 |
| Spot Probes | Corrosion Probes | 300 Hz – 40 kHz | 12.7 mm (0.50 in.) | Triax Fischer/LEMO | 9218203 | U8629128 |
| Spot Probes | Corrosion Probes | 2 kHz – 200 kHz | 6.3 mm (0.25 in.) | Powerlink™ / 7-Pin LEMO | 9230395 | U8629538 |
| Spot Probes | Corrosion Probes | 700 Hz – 80 kHz | 7.9 mm (0.31 in.) | Powerlink™ / 7-Pin LEMO | 9222343 | U8633012 |
| Spot Probes | Corrosion Probes | 500 Hz – 60 kHz | 11.2 mm (0.44 in.) | Powerlink™ / 7-Pin LEMO | 9230403 | U8629157 |
| Spot Probes | Corrosion Probes | 300 Hz – 40 kHz | 12.7 mm (0.50 in.) | Powerlink™ / 7-Pin LEMO | 9230404 | U8633001 |
Đầu dò kiểm tra mối hàn/Weld Probes
Weld probes are designed to inspect ferrous welds. They provide a cost-effective alternative to magnetic particle inspection, which requires the part to be prepared (cleaned) prior to inspection.
| Type | Series | Frequency | Tip Diameter | Overall Length | Connector | Part ID | Item Number |
| Weld Probe | Straight Weld probe | 100 kHz – 600 kHz | 5.0 mm (0.196 in.) | 6.1 mm (2.4 in.) | 4-Pin LEMO | WLD-5-63 | U8690018 |
| Weld Probe | Straight Weld probe | 100 kHz – 600 kHz | 8.0 mm (0.314 in.) | 5.5 mm (2.16 in.) | 4-Pin LEMO | WLD-8-55 | U8690019 |
| Weld Probe | Right Angle Weld Probe | 100 kHz – 600 kHz | 5.0 mm (0.196 in.) | 5.0 mm (1.96 in.) | 4-Pin LEMO | WLD901-5-50 | U8690022 |
| Weld Probe | Right Angle Weld Probe | 100 kHz – 600 kHz | 8.0 mm (0.314 in.) | 5.0 mm (1.96 in.) | 4-Pin LEMO | WLD901-8-50 | U8690023 |
| Weld Probe | Paint Thickness Probe | 100 kHz – 600 kHz | 6.35 mm (0.25 in.) | 10.1 mm (4.0 in.) | 4-Pin LEMO | NEC-2236 | U8690035 |
| Weld Probe | Straight Weld probe | 100 kHz – 600 kHz | 5.0 mm (0.196 in.) | 6.1 mm (2.4 in.) | Powerlink™ / 7-Pin LEMO | 9403362 | U8629270 |
| Weld Probe | Straight Weld probe | 100 kHz – 600 kHz | 8.0 mm (0.314 in.) | 5.5 mm (2.16 in.) | Powerlink™ / 7-Pin LEMO | 9403356 | U8690033 |
| Weld Probe | Right Angle Weld Probe | 100 kHz – 600 kHz | 5.0 mm (0.196 in.) | 5.0 mm (1.96 in.) | Powerlink™ / 7-Pin LEMO | 9403373 | U8629539 |
| Weld Probe | Right Angle Weld Probe | 100 kHz – 600 kHz | 8.0 mm (0.314 in.) | 5.0 mm (1.96 in.) | Powerlink™ / 7-Pin LEMO | 9403374 | U8690038 |
| Weld Probe | NECP-1152 SS W/45° Probe Tip | 100 kHz – 1 MHz | 7.9 mm (0.312 in.) | 14.0 mm (5.5 in.) | Powerlink™ / 7-Pin LEMO | 9231109 | U8629540 |
| Weld Probe | SPO-4376 Straight Weld Probe | 100 kHz – 1 MHz | 8.3 mm (0.330 in.) | 8.2 mm (3.25 in.) | Powerlink™ / 7-Pin LEMO | SPO-4376L | U8629541 |
| Weld Probe | Paint Thickness Probe | 100 kHz – 600 kHz | 6.35 mm (0.25 in.) | 10.1 mm (4.0 in.) | Powerlink™ / 7-Pin LEMO | 9403361 | U8629269 |
| Weld Probe | Straight Weld probe | 100 kHz – 600 kHz | 5.0 mm (0.196 in.) | 6.1 mm (2.4 in.) | Triax Fischer/LEMO | WLD-5-63-TF | U8690046 |
| Weld Probe | Straight Weld probe | 100 kHz – 600 kHz | 8.0 mm (0.314 in.) | 5.5 mm (2.16 in.) | Triax Fischer/LEMO | WLD-8-55-TF | U8690047 |
| Weld Probe | Right Angle Weld Probe | 100 kHz – 600 kHz | 5.0 mm (0.196 in.) | 5.0 mm (1.96 in.) | Triax Fischer/LEMO | WLD901-5-50-TF | U8629542 |
| Weld Probe | Right Angle Weld Probe | 100 kHz – 600 kHz | 8.0 mm (0.314 in.) | 5.0 mm (1.96 in.) | Triax Fischer/LEMO | WLD901-8-50-TF | U8690048 |
| Weld Probe | NECP-1152 SS W/45° Probe Tip | 100 kHz – 1 MHz | 7.9 mm (0.312 in.) | 14.0 mm (5.5 in.) | Triax Fischer/LEMO | 9231110 | U8629184 |
| Weld Probe | SPO-4376 Straight Weld Probe | 100 kHz – 1 MHz | 8.3 mm (0.330 in.) | 8.2 mm (3.25 in.) | Triax Fischer/LEMO | 9218631 | U8629543 |
| Weld Probe | Paint Thickness Probe | 100 kHz – 600 kHz | 6.35 mm (0.25 in.) | 10.1 mm (4.0 in.) | Triax Fischer/LEMO | NEC-2236-TF | U8629544 |
Đầu dò dạng trượt/Sliding Probes
Sliding probes are specifically designed to inspect rows of fasteners. They operate in reflection mode and are used to find surface and near-surface flaws. They come in adjustable types, which are able to accommodate different fastener sizes, and fixed types, which are usually procedure specific.
Cố định
| Type | Series | Frequency range | Height | Length | Width | Connector | Part number | Item number |
| Sliding Probe | Adjustable | 100 Hz – 5 kHz | 25.4 mm (1.00 in.) | 85.1 mm (3.35 in.) | 19.1 mm (0.75 in.) | (2) 1-Pin Microdot | LTW0419-1 | U8633025 |
| Sliding Probe | Adjustable | 500 Hz – 10 kHz | 25.4 mm (1.00 in.) | 44.7 mm (1.76 in.) | 25.4 mm (1.00 in.) | (2) 1-Pin Microdot | LTW2018-1 | U8633056 |
| Sliding Probe | Adjustable | 500 Hz – 10 kHz | 25.4 mm (1.00 in.) | 44.5 mm (1.75 in.) | 25.4 mm (1.00 in.) | (2) 1-Pin Microdot | LTW0423-1 | U8690009 |
| Sliding Probe | Adjustable | 1 kHz – 20 kHz | 25.4 mm (1.00 in.) | 25.4 mm (1.00 in.) | 25.4 mm (1.00 in.) | (2) 1-Pin Microdot | LTW5010-1 | U8690010 |
| Sliding Probe | Adjustable | 5 kHz – 100 kHz | 25.4 mm (1.00 in.) | 38.1 mm (1.5 in.) | 19.1 mm (0.75 in.) | (2) 1-Pin Microdot | LTW1022 | U8633026 |
Dạng mềm dẻo
| Type | Series | Frequency range | Height | Length | Width | Connector | Part number | Item number |
| Sliding Probe | Fixed | 1 kHz – 100 kHz | 25.4 mm (1.00 in.) | 38.1 mm (1.5 in.) | 20.3 mm (0.80 in.) | Triax Fischer/LEMO | NEC-4039 | U8636053 |
| Sliding Probe | Fixed | 1 kHz – 100 kHz | 25.4 mm (1.00 in.) | 38.1 mm (1.5 in.) | 20.3 mm (0.80 in.) | 2-Pin Microdot | NEC-4039-1 | U8636054 |
| Sliding Probe | Fixed | 1 kHz – 100 kHz | 25.4 mm (1.00 in.) | 38.1 mm (1.5 in.) | 20.3 mm (0.80 in.) | 4-Pin Fischer | NEC-4039-2 | U8636055 |
| Sliding Probe | Fixed | 1 kHz – 100 kHz | 25.4 mm (1.00 in.) | 38.1 mm (1.5 in.) | 20.3 mm (0.80 in.) | (2) 1-Pin Microdot | NEC-4039-3 | U8629545 |
| Sliding Probe | Fixed | 1 kHz – 100 kHz | 38.1 mm (1.5 in.) | 58.4 mm (2.3 in.) | 30.4 mm (1.2 in.) | 7-Pin LEMO | NEC-4039-7L | U8633027 |
Đầu dò kiểm tra độ dẫn điện và mẫu chuẩn/Conductivity Probes and Standards
Conductivity probes are designed for sorting non-ferrous metals and determining heat treatment condition or damage.
Conductivity Probes
| Type | Series | Frequency | Height | Length | Connector | Part number | Item number |
| Conductivity Probes | Right Angle | 60 kHz | 19.1 mm (0.75 in.) | 25.4 mm (1.00 in.) | 16-Pin LEMO | 9222340 | U8690027 |
| Conductivity Probes | Right Angle | 480 kHz | 19.1 mm (0.75 in.) | 25.4 mm (1.00 in.) | 16-Pin LEMO | 9222341 | U8690028 |
| Conductivity Probes | Straight | 60 kHz | 7.9 mm (0.31 in.) | 69.9 mm (2.75 in.) | 16-Pin LEMO | 9222360 | U8690029 |
| Conductivity Probes | Straight | 480 kHz | 7.9 mm (0.31 in.) | 69.9 mm (2.75 in.) | 16-Pin LEMO | 9222361 | U8690030 |
Conductivity Standards
| Part number | Item number | IACS % Value #1 (tolerance) | IACS % Value #2 (tolerance) | IACS % Value #3 (tolerance) | IACS % Value #4 (tolerance) | IACS % Value #5 (tolerance) |
| CREF2-04100 | U8861784 | 4.6 (±0.4) | 100.0 (±10) | n.a | n.a | n.a |
| CREF2-1742 | U8861881 | 17.2 (±1.5) | 42.7 (±4.4) | n.a | n.a | n.a |
| CREF2-2932 | U8861830 | 29.3 (±3) | 32.0 (±3.3) | n.a | n.a | n.a |
| CREF3-0129100 | U8861910 | 1.5 (±0.1) | 29.3 (±3) | 100.0 (±10) | n.a | n.a |
| CREF3-172942 | U8861675 | 17.2 (±1.5) | 29.3 (±3) | 42.7 (±4.4) | n.a | n.a |
| CREF3-172959 | U8861822 | 17.2 (±1.5) | 29.3 (±3) | 59.9 (±6) | n.a | n.a |
| CREF3-294259 | U8861924 | 29.3 (±3) | 42.7 (±4.4) | 59.9 (±6) | n.a | n.a |
| CREF4-17294259 | U8861629 | 17.2 (±1.5) | 29.3 (±3) | 42.7 (±4.4) | 59.9 (±6) | n.a |
| CREF4-17294259 | U8861629 | 17.2 (±1.5) | 29.3 (±3) | 42.7 (±4.4) | 59.9 (±6) | n.a |
| CREF4-173259100 | U8861982 | 17.2 (±1.5) | 32.0 (±3.3) | 59.9 (±6) | 100.0 (±10) | n.a |
| CREF5-01293242100 | U8861902 | 1.5 (±0.1) | 29.3 (±3) | 32.0 (±3.3) | 42.7 (±4.4) | 100.0 (±10) |
| CREF5-04174559100 | U8861929 | 4.6 (±0.4) | 17.2 (±1.5) | 45.7 (±4) | 59.9 (±6) | 100.0 (±10) |
Đâu dò bề mặt cong góc 90 độ/Right Angle Surface Probes
90° tip, stainless-steel shaft. Designed for general surface crack detection, these probes are available in a variety of lengths, and with various coil configurations, drops, and connector options.
Tham khảo thêm Catalog để biết chi tiết thông số đầu dò Của Olympus.
Đầu dò bề mặt thẳng/Straight Shaft Surface Probes
Straight stainless-steel shaft. Designed for general surface crack detection, these probes are available in a variety of lengths, and with various coil configurations and connector options.
Đầu dò bề mặt góc nghiêng/Angle Shaft Surface Probe
30° or 45° tip, stainless-steel shaft. Designed for general surface-crack detection, these probes are available in a variety of lengths, and with various coil configurations, drops, and connector options.
Đầu dò bề mặt có thể bẻ cong/Flexible Shaft Surface Probes
Flexible copper shaft of these probes can be bent to various shapes. Designed for general surface crack detection, flexible surface probes are available in a variety of lengths, and with various coil configurations, drops, and connector options.
Đầu dò bề mặt thân gập/Bent Shaft Surface Probes
Bent shaft surface probes are general purpose stainless-steel probes used for surface or near-surface crack detection. They are available in a variety of sizes, and with various coil configurations and connector options.
Đầu dò bề mặt dạng bút chì/Pencil Surface Probe
Pencil surface probes are general purpose plastic-tip probes used for surface or near-surface crack detection. They are available with various coil configuration and connector options. Pencil surface probes feature an adjustable collar for greater stability.
Các loại đầu dò bề mặt khác/All Other Surface Probes
A specialized probe series including the Pencil 3551l probe, Blade probe, Plastic-Tip probe, Finger probe, and Spring Loaded probe.
Đầu dò quay bằng thép sử dụng với Scanner/Rotating Stainless Steel Scanner Probes
The rotating stainless steel scanner probes section includes a range of all-stainless-steel probes, including the standard series and the SEU series.
Các đầu dò quay khác/All Other Scanner Probes
The other rotating scanner probes section includes a variety of specialized scanner probes, such as the Adjustable X type series, the Adjustable Y type series, the Countersink series, and the Countersink Stainless Steel series.
Đầu dò dạng nhẫn/vòng/Ring/Donut Probes
Ring/Donut probes are made to fit various fastener head diameters. Their principal use is for subsurface crack detection with the fastener in place. They are available in both bridge and reflection configurations.
Absolute bridge type probes
| Cuộn dây/Coil | Tần số/Frequency | ID mm (in.) | OD mm (in.) | Kết nối/Connector | Part ID | U8 # | Cáp/Cable | Item # |
| Bridge | 50 Hz to 500 Hz | 8.89 (0.35) | 19.05 (0.75) | Triax Fischer | LR017-5-TF | U8636097 | 9122244 | U8800091 |
| Bridge | 50 Hz to 500 Hz | 17.8 (0.7) | 33 (1.3) | Microdot | LR0113-5 | U8636094 | 9102894 | U8800041 |
| Bridge | 50 Hz to 500 Hz | 19.05 (0.75) | 32.5 (1.28) | Microdot | LR0114-5 | U8636071 | 9102894 | U8800041 |
| Bridge | 50 Hz to 500 Hz | 19.05 (0.75) | 32.5 (1.28) | Triax Fischer | LR0114-5-TF | U8636072 | 9122244 | U8800091 |
| Bridge | 500 Hz to 10 kHz | 6.48 (0.255) | 16.51 (0.65) | Microdot | LR106-1 | U8636107 | 9102894 | U8800041 |
| Bridge | 500 Hz to 10 kHz | 6.48 (0.255) | 16.51 (0.65) | Triax Fischer | LR106-1-TF | U8620455 | 9122244 | U8800091 |
| Bridge | 500 Hz to 10 kHz | 7.62 (0.3) | 19.05 (0.75) | Triax Fischer | LR107-1-TF | U8636077 | 9122244 | U8800091 |
| Bridge | 3 kHz to 20 kHz | 7.99 (0.315) | 17.2 (0.68) | Triax Fischer | LR506-2 | U8620265 | 9122244 | U8800091 |
| Bridge | 50 Hz to 500 Hz | 25.4 (1.0) | 38.35 (1.51) | Microdot | LR0115-1 | U8636095 | 9102894 | U8800041 |
| Bridge | 300 Hz to 5 kHz | 12.7 (0.5) | 25.4 (1.0) | Triax Fischer | LR0510-5-TF | U8636098 | 9122244 | U8800091 |
| Bridge | 300 Hz to 5 kHz | 7.62 (0.3) | 19.81 (0.78) | Triax Fischer | LR058-1-TF | U8636089 | 9122244 | U8800091 |
Cáp và bộ chuyển đổi/Cables and Adaptors
Olympus sản xuất tất cả các cáp và bộ chuyển đổi phù hợp với đầu dò của nhiều hãng sản xuất khác nhau.
Tham khảo thêm tại Danh mục cáp và đầu chuyển đổi
Mẫu chuẩn/Standards
Mẫu chuẩn cần thiết trong hầu hết các ứng dụng ET và có sẵn với nhiều loại vật liệu và tiêu chuẩn khác nhau.
