Kiểm tra tự động từ xa/Remotely Inspect Welds and Map Corrosion
Bộ quét tự động hoàn toàn, có thể thay đổi hướng di chuyển, điều khiển từ xa/The SteerROVER™ portable motorized scanner is based on the field-proven
Tương tự như thiết bị MapROVER™ nhưng được tăng cường thêm khả năng lái và thay đổi hướng di chuyển. Các bề mặt lớn, khó tiếp cận như các bồn bể áp lực không còn ngoài tầm với nữa. Bộ quét cũng có thể được cấu hình để thực hiện các công việc mã hóa lập bản đồ ăn mòn sử dụng cánh tay quét mành hay kiểm tra mối hàn sử dụng bộ gá phù hợp.
Không cần máy tính cồng kềnh để điều khiển hay cài đặt, các hoạt động được thực hiện trực tiếp trên tay cầm điều khiển với màn hình cảm ứng, chỉ cần cáp kết nối giữa tay cầm điều khiển và thiết bị OmniScan X3 hay FOCUS PX™.
Ưu điểm/Benefits
- Stop relying on expensive scaffolding: Inspect hard-to- reach areas with a steerable scanner comprised of two pods with independent motors and four strong magnetic wheels.
- Easy to control: Adjust the scanner’s position in relation to the weld or the zone to be mapped using an intuitive touch screen remote and two joysticks.
- Multiple control options: Configure the remote so that the scanner’s movement requires continuous operator input or so that movement starts when the operator provides a momentary input and stays on until a second input. Two automated raster scan patterns are also available.
- Versatile: Choose from a motorized raster arm for corrosion inspection or a four-probe holder rack for weld inspection (increase to six probes with optional probe holders).
- Designed with safety in mind: Emergency-stop buttons located on the scanner and the power controller.
- Durable: Divisible cable conduit umbilical offers protection and flexible configurations.
- Adaptable: The probe rack can be used for circumferential and longitudinal weld inspection.
Phụ kiện tiêu chuẩn/Standard Inclusions
- Steerable motorized scanner.
- Touch screen remote control.
- Power controller.
- Detachable umbilical cables with divisible protection sleeve.
- Encoder cable linking to current OmniScan and FOCUS PX instruments.
- Irrigation tubing.
- Carrying case(s).
- Motorized raster arm or probe holder rack (depends on configuration).

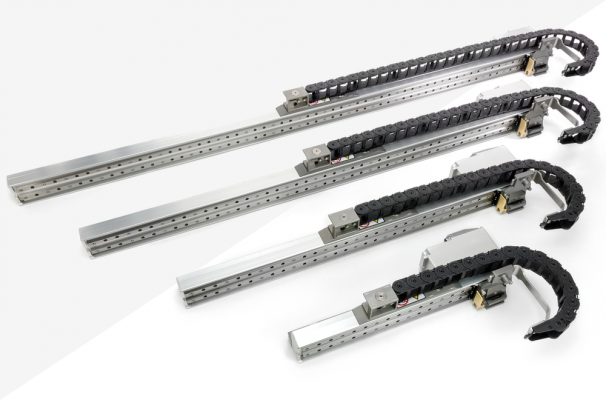

Tay quét trượt/Raster arm
Spring-loaded probe holder compatible with the HydroFORM® scanner and Dual Linear Array™ corrosion probe.
Bộ giá giữ đầu dò xoay được/Pivoting probe holder rack
- Bốn tay giữ đầu dò với lò xo/Four spring-loaded probe holders.
- Hai tay giữ đầu dò Phased Array dễ dàng điều chỉnh/Two adjustable yokes to hold phased array probes (up to 57.6 mm wide and 48.5 mm long).
- Hai tay giữ đầu dò TOFD dễ dàng điều chỉnh/Two adjustable yokes to hold TOFD-P/E probes. (up to 45 mm wide and 36.8 mm long)
Cấu hình thiết bị/Configurations
The SteerROVER™ scanner can be ordered in different configurations depending on the application (weld or corrosion) and by combining different raster arm and cable length options.
Thông số kỹ thuật/Specifications
- Circumferential pipe diameter range: 2.75 in. (70 mm) up to flat
- Longitudinal pipe diameter range: 12 in. (305 mm) up to flat
- Internal, circumferential pipe range: 24 in. (610 mm) and up
- Maximum scanner speed: 250 mm/s
- Maximum raster arm speed: 762 mm/s
- Scanner idler encoder resolution: 13.78 steps/mm Scanner motor encoder resolution: 872.5 steps/mm Raster arm resolution: 240.2 steps/mm
Thông tin đặt hàng/Ordering Information
Part number | Item Number | Description |
SteerROVER-Weld-5m | Q7500050 | SteerROVER™ scanner with weld probe holder rack. 5 m (16 ft) long cables. |
SteerROVER-Weld-15m | Q7500051 | SteerROVER scanner with weld probe holder rack. 15 m (49 ft) long cables. |
SteerROVER-Weld-30m | Q7500052 | SteerROVER scanner with weld probe holder rack. 30m (98 ft) long cables. |
SteerROVER-Raster600-7.5m | Q7500053 | SteerROVER scanner with 600 mm (2 ft) long raster arm. 7.5m (24.6 ft) long cables. |
SteerROVER-Raster600-15m | Q7500054 | SteerROVER scanner with 600 mm (2 ft) long raster arm. 15m (49 ft) long cables. |
SteerROVER-Raster600-30m | Q7500055 | SteerROVER scanner with 600 mm (2 ft) long raster arm. 30m (98 ft) long cables. |
SteerROVER-Raster900-7.5m | Q7500056 | SteerROVER scanner with 900 mm (3 ft) long raster arm. 7.5m (24.6 ft) long cables. |
SteerROVER-Raster900-15m | Q7500057 | SteerROVER scanner with 900 mm (3 ft) long raster arm. 15m (49 ft) long cables. |
SteerROVER-Raster900-30m | Q7500058 | SteerROVER scanner with 900 mm (3 ft) long raster arm. 30 m (98 ft) long cables. |
MapROVER-A-Laser | Q7750081 | Optional laser guide to be used with the probe holder rack. |
SteerROVER-A-CameraMount | Q7201259 | Optional camera mount support. |
SteerROVER-A-PivotingWeldRack | Q7201258 | Pivoting probe holder rack to add weld inspection capability to a SteerROVER-Raster package. |
MapROVER-SP-VPH-PA | Q7750121 | Vertical probe holder for phased array probe. |
MapROVER-SP-VPH-TOFD | Q7750126 | Vertical probe holder for TOFD probe. |
MapROVER-A-D790-ProbeHolder | Q7750070 | Rugged probe holder and mounting fixture for D790-SM dual UT probe. |
Bộ gá đầu dò dạng thẳng đứng
Bộ gá đầu dò dạng thẳng đứng được trang bị với các chốt tùy chọn và tay gá tiêu chuẩn dạng drop arms với khoảng cách rộng đủ cho đầu dò A12 và A32 của Olympus. Bộ gá có thể sử dụng cho cả đầu dò bên trái và bên phải.
