Bộ quét đầu dò quay sử dụng phương pháp dòng điện xoáy

Bộ quét cho phương pháp kiểm tra dòng điện xoáy của Olympus thường được sử dụng kết hợp với dòng sản phẩm Nortec. Với nhiều lựa chọn về tốc độ từ 600 tới 3000 vòng trên giây (rpm) cũng như lựa chọn tần số kiểm tra từ 100 Hz tới 6 MHz, loại kết nối và vật liệu đầu dò đa dạng cho nhiều ứng dụng kiểm tra khác nhau. Các ứng dụng phổ biến bao gồm: kiểm tra lỗ khoan có và không có đinh tán, kiểm tra lỗ khoan trên thân vành bánh xe, kiểm tra bề mặt, kiểm tra vết nứt sau sản xuất, kiểm tra các ống ngắn, và kiểm tra tần số thấp trên nhiều lớp thân vỏ máy bay.

Liên hệ nhận báo giá

Mã: MiniMite Danh mục: Dòng điện xoáy, Olympus, Phát hiện khuyết tật, Scanner & phụ kiện Từ khóa: Bolt hole, ET, MiniMite

Mô tả

Tính năng

Tốc độ quay từ 600 tới 3000 rpm
Tần số từ 100 Hz tới 6 MHz
Kết nối đa dạng
- 4-pin LEMO
- 4-pin Fischer
Chủng loại đầu dò phong phú
- Reflection differential
- Absolute bridge
- Absolute reflection
- Differential bridge
- Differential reflection
Tính năng tự nhận diện đầu dò và cài đặt PowerLink™
Có đèn báo tín hiệu ngay trên bộ quét

Lựa chọn tốc độ quét/Speed Range for Bolthole Scanners (rpm)

	Nortec 19eII	Nortec 24	Nortec 2000 S/D	WorkStation 210/215/220	Nortec 500
MiniMite	1200	1200	600 – 3000	600 – 3000	600 – 3000
RA-2000	1200	1200	600 – 2400	600 – 2400	600 – 2400
SpitFire	1200	1200	600 – 3000	600 – 3000	600 – 3000

MiniMite Scanner

Speed Range: Variable, 600 to 3000 rpm
Speed Control: Instrument controlled
Frequency Range: 200 kHz – 6 MHz
Probe Connector: 4-pin LEMO or 4-pin Fischer with “O” rings
Probe Types: Reflection differential
Signal Coupling: Rotary transformer
Mounting: Hand held
Orientation: No physical restrictions
Alarm: Red LED indicator, located at the rear and top of the case
Cable Connector: 16-pin LEMO
Size: 3.5″ L x 1.0″ W x 1.5″ H (89 mm x 25 mm x 38 mm)
Weight: 4 oz (0.11 kg)
Part Number: 9744739 (LEMO); 9744738 (Fischer)

RA-2000 Scanner

Speed Range: Variable, 600 to 2400 rpm
Speed Control: Instrument controlled
Frequency Range: 200 kHz – 6 MHz
Probe Connector: 4-pin LEMO
Probe Types: Reflection differential
Signal Coupling: Rotary transformer
Mounting: Hand held
Orientation: No physical restrictions
Alarm: Red LED indicator, located at the rear and top of the case
Cable Connector: 16-pin LEMO
Size: 3.0″ L x 1.25″ W x 5.0″ H (76 mm x 32 mm x 127 mm)
Weight: 10 oz (0.28 kg)
Part Number: 9744704

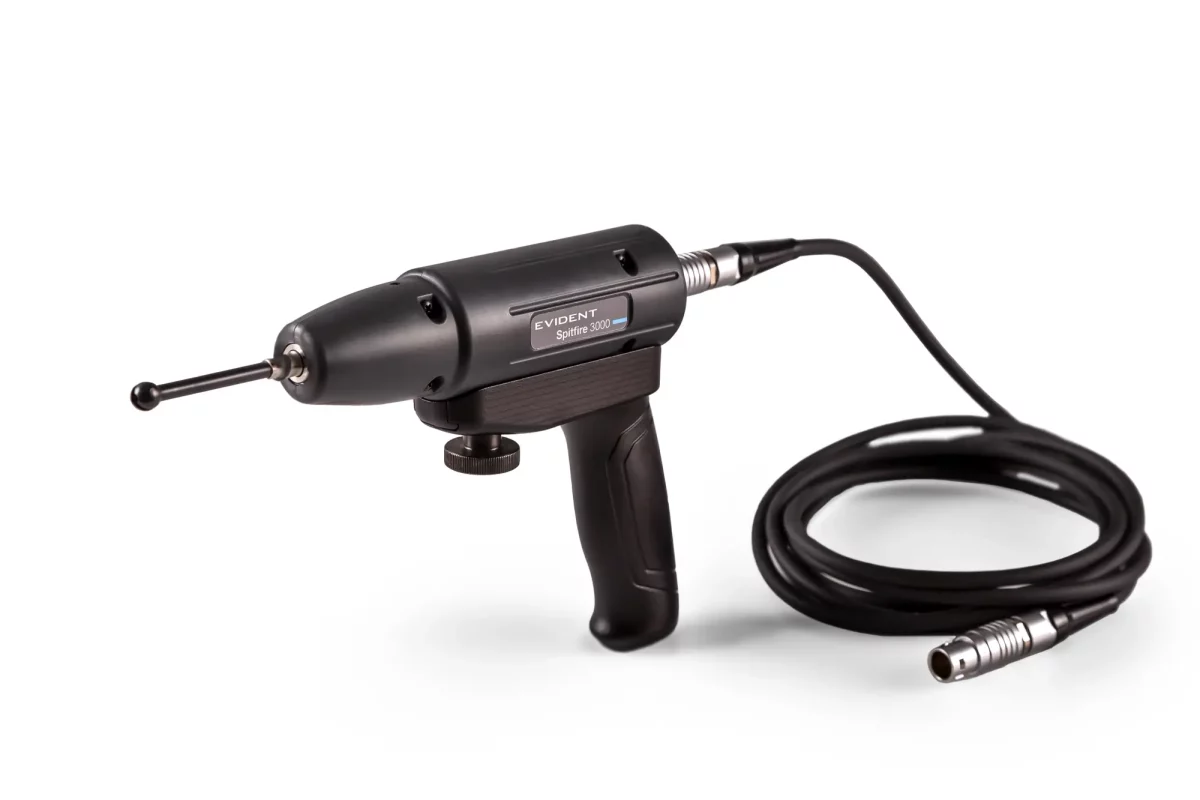

SpitFire 2000 Scanner

Speed Range: Variable, 600 to 3000 rpm
Speed Control: Instrument controlled
Frequency Range: 100 kHz – 6 MHz
Probe Connector: 4-pin Fischer with “O” rings
Probe Types: Reflection differential
Signal Coupling: Rotary transformer
Stall Torque: 30 oz.-inch max (0.85 kg-millimeter max)
Torque Selection: Switchable between three ranges (low, medium, and high)
Mounting: Hand-held, pistol grip, finger hook, and special fixture mounts
Orientation: No physical restrictions
Alarms: Red LED indicator, located at the rear and top of the case
Cable Connector: 16-pin LEMO
Size: 6.0″ L x 1.7″ diameter (152 mm x 43 mm)
Weight: 1 lb (0.45 kg)
Part Number: 9744668

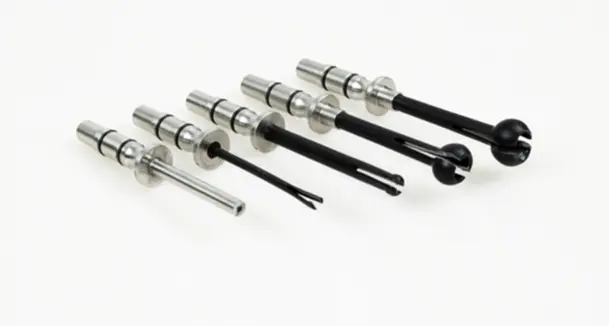

Đầu dò dòng điện xoáy dùng cho Bole Hole Scanners

Rotating scanner probes are used with mechanical devices for automatically rotating the probe in the hole. Probes utilize reflection differential coils with operating frequencies of 100 kHz to 2 MHz are typical. They bear close tolerances and are highly reliable.

Rotating scanner probes are available in a variety of diameters and styles to work with Olympus rotating scanners. The SPO-5965 and SUB series probes are fitted with a 4-pin Fischer connector while the SPO-3564 series incorporate the 4-pin LEMO connector style.

The probes listed on this page are designed to be rugged and are nearly indestructible when dropped or expanded. Their probe tips have flexible plastics tips that automatically compress to their original size after being expanded to fit inside larger bolt holes (see chart below for hole size ranges). The benefit of these flexible tips is that no additional manual adjustment has to be made to the probe after a bolt hole has been reamed to a larger diameter.

Rotating scanner probes use a reflection differential type coil operating in the 200 kHz to 3 MHz range. They are suitable for aluminum structures as well as low conductivity materials.

	Kết nối kiểu Fischer/Fischer Connector					Kết nối kiểu LEMO/LEMO Connector
	SPO-5965* The SPO-5965 probes are fitted with a 4-Pin Fischer connector. Features a reflection differential type coil that operates in the 200 kHz to 3 MHz range.		SUB Series* The SUB series probes are fitted with a 4-Pin Fischer connector. Features a reflection differential type coil that operates in the 200 kHz to 3 MHz range. Easy-to-remove backshell connector.			SPO-3564 The SPO-3564 series incorporates the 4-Pin LEMO-style connector**. Features a reflection differential type coil that operates in the 200 kHz to 3 MHz range.
Dải đường kính lỗ/Range of Hole Size mm (in.)	Part Number	Item Number	Part Number	Item Number	Working Length mm (in.)	Part Number	Item Number	Chiều dài kiểm tra được/Working Length mm (in.)
3.2 to 3.9 (0.125 to 0.156)	9230531	U8610280	SUB-8-10	U8600494	44.0 (1.75)	9230784	U8614109	28.0 (1.10)
3.9 to 4.7 (0.156 to 0.187)	9230061	U8610267	SUB-10-12	U8600481	44.0 (1.75)	9230078	U8614059	28.0 (1.10)
4.7 to 5.5 (0.187 to 0.218)	9219979	U8610231	SUB12-14	U8600482	44.0 (1.75)	9217153	U8614091	28.0 (1.10)
5.5 to 6.5 (0.218 to 0.250)	9219980	U8610232	SUB-14-16	U8600483	50.8 (2.00)	9217154	U8614092	28.0 (1.10)
6.5 to 7.1 (0.250 to 0.281)	9219981	U8610233	SUB-16-18	U8600484	50.8 (2.00)	9217155	U8614093	28.0 (1.10)
7.1 to 7.9 (0.281 to 0.312)	9219982	U8610234	SUB-18-20	U8600485	50.8 (2.00)	9217156	U8614094	38.0 (1.50)
7.9 to 9.5 (0.312 to 0.375)	9219983	U8610235	SUB-20-24	U8600486	50.8 (2.00)	9217157	U8614095	38.0 (1.50)
9.5 to 11.0 (0.375 to 0.437)	9219978	U8610230	SUB-24-28	U8600487	50.8 (2.00)	9217158	U8614096	38.0 (1.50)
11.0 to 12.7 (0.437 to 0.500)	9219984	U8610236	SUB-28-32	U8600488	50.8 (2.00)	9217159	U8614097	38.0 (1.50)
12.7 to 14.3 (0.500 to 0.562)	9219985	U8610237	SUB-32-36	U8600489	50.8 (2.00)	9217160	U8614098	38.0 (1.50)
14.3 to 15.9 (0.562 to 0.625)	9230156	U8610252	SUB-36-40	U8600490	50.8 (2.00)	9218785	U8614099	38.0 (1.50)
15.9 to 17.4 (0.625 to 0.687)	9230157	U8610253	SUB-40-44	U8600491	50.8 (2.00)	9218786	U8614100	38.0 (1.50)
17.4 to 19.0 (0.687 to 0.750)	9230158	U8610254	SUB-44-48	U8600492	50.8 (2.00)	9218787	U8614101	38.0 (1.50)
* For use with MiniMite Fischer, Spitfire, and other “Universal” scanners. ** For use with MiniMite LEMO, RA19, and RA2000 scanners.
