Thiết bị nội soi video công nghiệp dòng gọn nhẹ IPLEX G Lite

Name: Thiết bị nội soi video công nghiệp dòng gọn nhẹ IPLEX G Lite
Brand: VISCO NDT
SKU: IPLEX G Lite
Rating: 5 (1 reviews)

Máy nội soi công nghiệp IPLEX G Lite được trang bị công nghệ hình ảnh mạnh mẽ gói gọn trong một hình dáng nhỏ gọn nhưng chắc chắn. Với trọng lượng gọn nhẹ có thể mang đi bất cứ nơi đâu, người sử dụng có thể đáp ứng bất kỳ yêu cầu và ứng dụng nào với chất lượng hình ảnh vượt trội và dễ sử dụng giúp nhanh chóng hoàn thành công việc.

The IPLEX G Lite industrial videoscope packs powerful imaging capabilities into a small, rugged body. Lightweight and able to go almost anywhere, users working in challenging applications have a remote visual inspection tool with the image quality and ease of use to get the job done. View in Olympus website (English).

Liên hệ nhận báo giá

Mã: IPLEX G Lite Danh mục: Hồng ngoại (IRT), Nội soi đo lường, Nội soi khuyết tật, Olympus, Quan sát hình ảnh (VT, RVI, HSV) Từ khóa: IPLEX, Nội soi, RVI

Mô tả

Cơ động, mạnh mẽ

Thiết bị nội soi video công nghiệp IPLEX G Lite tích hợp khả năng chụp ảnh mạnh mẽ trong một thân máy nhỏ gọn và chắc chắn. Cơ động và có thể mang theo mọi nơi, người dùng làm việc trong điều kiện thử thách có một công cụ phục vụ công việc kiểm tra trực quan từ xa với chất lượng hình ảnh sắc nét và dễ sử dụng để hoàn thành công việc.

Tới mọi nơi

Trọng lượng nhẹ, thiết kế bền chắc, và đi tới mọi nơi cần

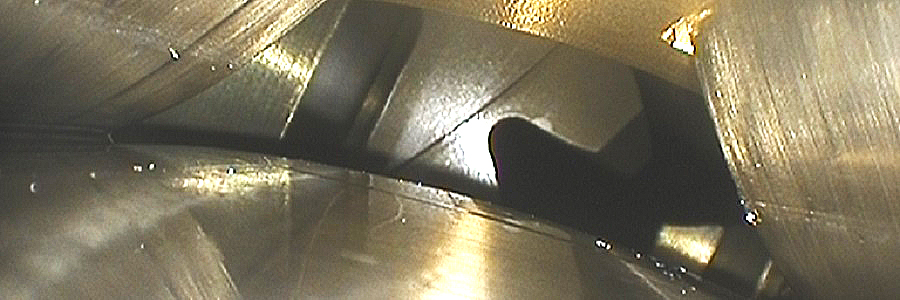

Hình ảnh chân thực

Rõ hơn, sáng hơn khi cần ra quyết định chính xác

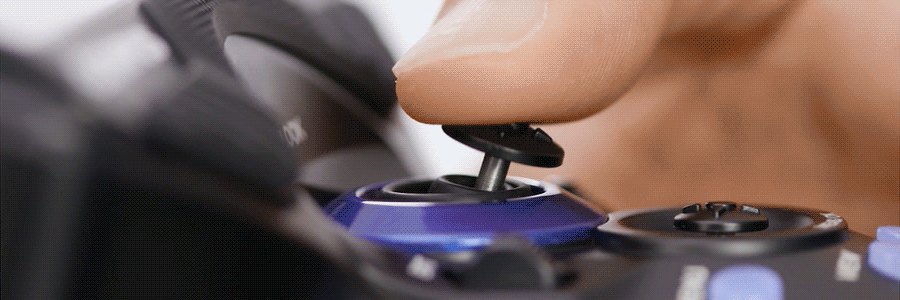

Nhanh chóng & dễ dàng

Thiết kế cho công việc kiểm tra nhanh chóng và hiệu quả

Chức năng cơ bản

Model No.		IV9420GL	IV9435GL	IV9620GL	IV9635GL	IV96100GL
Dây soi	Scope diameter	Φ4.0 mm		Φ6.0 mm
	Scope length	2.0 m	3.5 m	2.0 m	3.5 m	10.0 m
	Exterior	High durability tungsten braid
	Tube flexibility	Uniform stiffness		Tapered Flex tube with flexibility gradually increasing toward the distal end
	Temperature sensor	2-stage indicator for high temperature warning
Phần dây quay đầu soi	Articulation angle up/down/right/left	130°		150°		110°
	Articulation operation	TrueFeel scope tip articulation with electronic articulatinon
Trọng lượng (với pin)		1.15 kg (2.5lbs)	1.21 kg (2.6lbs)	1.23 kg (2.7lbs)	1.34 kg (2.9lbs)	1.83 kg (4.0lbs)
Kích thước (W x D x H)		128 mm × 203 mm × 110 mm (5 in. × 8 in. × 4.3 in.)
Kích thước vali vận chuyển		455 mm × 330 mm × 185 mm (18 in. × 13 in. × 7.2 in.) Carry-on size on most airlines
Nguồn sáng		LED illumination ※There is a battery operation time extension function by ECO mode lighting control
Màn hình		4.3-inch WVGA LCD with capacity-type touch panel
Nguồn điện	AC power	100 V to 240 V, 50/60 Hz (with supplied AC adapter)
	Battery	7.4 V nominal, approx.(with supplied Battery) Battery operation time : FYI approx.90minutes
Chuất xuất Video	HDMI	Type C HDMI 1.4
Head set (Mic in/ Audio out)		Φ3.5 mm mini plug CTIA
Live image streaming		Attach the recommended USB wireless LAN adapter to the Type A USB connector

Phần mềm điều khiển

Image manipulations	5X digital zoom, 16 step brightness control
Gain control	4 step adjustable gain control （Manual, Auto, Wider1, Wider2）
Dynamic Noise Rediction	Available
Display text options	30-character title display
Note text options	30-character title display、mark, Free drawing
Image display functions	Live image can be inverted to right and left, inverted to up and down and rotate 180 degrees

RECORDING MANAGEMENT FUNCTIONS

Recording media		SDHC (*with supplied SDHC）
Recording media		micro SDHC （using the recommended parts） *Setting of the Constant Video function ON
Internal Memory		Available (only the Still image recording)
Overlay		Selectable 30 character title with date, time, Optical Tip, OLYMPUS logo, Title and system setting
Thumbnail image display		Recorded images can be displayed as thumbnails
Still image recording	Resolution	H768 x V576（Pixel）
Still image recording	Recording format	Compressed JPEG format
Video recording	Resolution	H768 x V576（Pixel）
	Recording format	MPEG 4 AVC/H.264 comforms to Baseline Profile. Windows Media Player12 compatible
	Frame rate	60fps /30fps

Chức năng đo

Scaler measurement	Using reference length to measure object length

STEREO MEASUREMENT FUNCTIONS — UPGRADING FOR OPTIONAL FUNCTION

Distance	Distance between two points
Point-to-line	Perpendicular distance between a point and a user-defined line
Depth	Orthogonal depth/height distance between a point and a user-defined plane
Area/Lines	Multiple point circumference and area measurement

Điều kiện hoạt động

Operating temperature	Insertion tube	In air : -25 ℃ to 100 ℃, In water : 10 ℃ to 30 ℃
	Other parts	In air : -10 ℃ to 40 ℃ (with battery)
	Other parts	In air : 0 ℃ to 40 ℃ (with AC power adapter and Battery charge)
Relative humidity	All parts	15 to 90 %
Liquid resistance	All parts	Operable when exposed to machine oil, light oil or 5 % saline solution
Dust proofing and Waterproofing	Insertion tube	Operable under water with viewing tip adapter attached Not operable underwater with stereo measurement tip adapters IV94 series — Up to an equivalent to 3.5 m(11.5 ft) in depth IV96 series — Up to an equivalent to 10m(32.9 ft) in depth.
Dust proofing and Waterproofing	Other parts	IP65. Not operable under water.　(Battery cover and others must be closed)

Tương thích với MIL-STD

The operating environment performance is confirmed by the following MIL-STD-810G and MIL-STD-461G.
No warranty is given as to damage-free under any conditions. Please ask Olympus sales representative for details.

Type	Method
Vibration	MIL-STD-810G、METHOD 514.7 Procedure I (General vibration test)
Shock	MIL-STD-810G、METHOD 516.7 Procedure IV　(Transit drop test)
Water Resistance	MIL-STD-810G、METHOD 506.6 Procedure I (Rain and Blowing rain test)
Humidity	MIL-STD-810G、METHOD 507.6 Procedure II
Salt Fog	MIL-STD-810G、METHOD 509.6
Sand and Dust	MIL-STD-810G、METHOD 510.6 Procedure I (Blowing dust test)
Icing/Freezing Rain	MIL-STD-810G、METHOD 521.4
Explosive Atmosphere	MIL-STD-810G、METHOD 511.6 Procedure I (Operation in an explosive atmosphere test)
Electromagnetic Interference (EMI)	MIL-STD-461G、RS103 All Ships Above Decks

Đầu soi quang học

4.0 mm Viewing Tip Adapters

		AT80D/FF-IV94G	AT120D/NF-IV94G	AT120D/FF-IV94G	AT100S/NF-IV94G	AT100S/FF-IV94G
Optical system	Field of view	80°	120°	120°	100°	100°
	Direction of view	Forward			Side
	Depth of field^*1	35 to ∞ mm	2 to 200 mm	17 to ∞ mm	2 to 15 mm	8 to ∞ mm
Distal end	Outer diameter^*2	Φ4.0 mm
	Distal end^*3	19.0 mm			21.7 mm
Oil Clearing		Available			ー

6.0 mm Viewing Tip Adapters

		AT40D-IV96G	AT80D/NF-IV96G	AT80D/FF-IV96G	AT120D/NF-IV96G	AT120D/FF-IV96G
Optical system	Field of view	40°	80°	80°	120°	120°
	Direction of view	Forward
	Depth of field^*1	200 to ∞ mm	9 to ∞ mm	35 to ∞ mm	2 to 200 mm	19 to ∞ mm
Distal end	Outer diameter^*2	Φ6.0 mm
Distal end	Distal end^*3	18.4 mm	18.9 mm	18.8 mm	18.9 mm	18.8 mm
Oil Clearing		Available

		AT80S-IV96G	AT120S/NF-IV96G	AT120S/FF-IV96G	AT220D-IV76	AT100D/100S-IV76
Optical system	Field of view	80°	120°	120°	220°	100°/100°
	Direction of view	Side			Forward	Forward/Side
	Depth of field^*1	15 to ∞ mm	1 to 25 mm	3 to ∞ mm	1.6 to ∞ mm	2.0 to ∞ mm
Distal end	Outer diameter^*2	Φ6.0 mm			Φ8.4 mm	Φ6.0mm
Distal end	Distal end^*3	24.2 mm			21.1 mm	29.5 mm
Oil Clearing		ー

STEREO Tip Adapters (4.0 mm AND 6.0 mm)

		AT50D/50D-IV94	AT50S/50S-IV94	AT60D/60D-IV96	AT60S/60S-IV96
Optical system	Field of view	50°/50°		60°/60°
	Direction of view	Forward	Side	Forward	Side
	Depth of field^*1	5 to ∞ mm	4 to ∞ mm	5 to ∞ mm	4 to ∞ mm
Distal end	Outer diameter^*2	Φ4.0 mm		Φ6.0 mm
Distal end	Distal end^*3	24.3 mm	28.4 mm	24.9 mm	31.3 mm

*1. Indicates the viewing distance with optimal focus.
*2. The adapter can be inserted into a ø4.0 mm , ø6.0 mm and ø8.4mm hole when it is mounted on the scope.
*3. Indicates the length of the rigid portion at the scope’s distal end when mounted.
